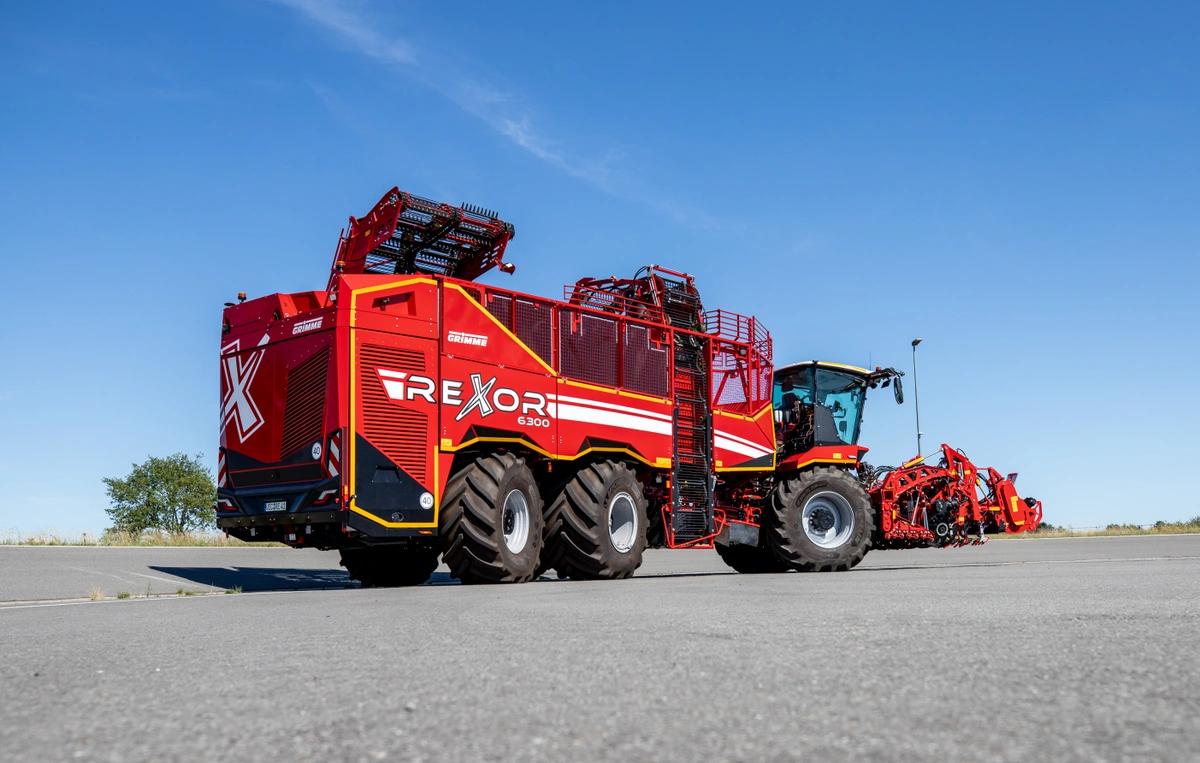

The new REXOR 6300 with increased driving comfort and better all-round visibility

The latest generation of the 6-row REXOR 6300 beet harvester with a bunker capacity of 45 m³ is equipped with the latest generation of cabs. In addition, the new IBX 200 ISOBUS auxiliary control unit is installed on the left armrest in the cab. The motor unit has been redesigned for ease of maintenance and accessibility.

Picture: The new REXOR 6300 can be configured with both Oppel wheels and walking shares. (©GRIMME)

Improved all-round visibility and more driver comfort thanks to the new, large cab

The REXOR 6300 is equipped with the new X 11 cab and offers a state-of-the-art workplace. The cab is designed for maximum comfort. The air-conditioned driver's seat, which can be rotated by 30°, ensures an ergonomic view of the collecting transport trailer respectively onto the clamp. In addition, the driver has footrests to the left and right of the steering column for a comfortable seating position.

The new cab also has generous storage options including a mobile phone holder, a drinks cooler compartment under the passenger seat and USB ports. In addition, the cab is the quietest on the market as a result of optimised sound insulation and is always comfortable thanks to the sun blinds and the new 2 climate zone concept ‘warm feet, cool head’. The new filter concept reliably protects the driver from external influences such as exhaust fumes or dust. The electrically adjustable and heated exterior mirrors with modified mirror geometry make it even easier to see the surroundings of the entire machine. This allows the machine to be manoeuvred comfortably and safely.

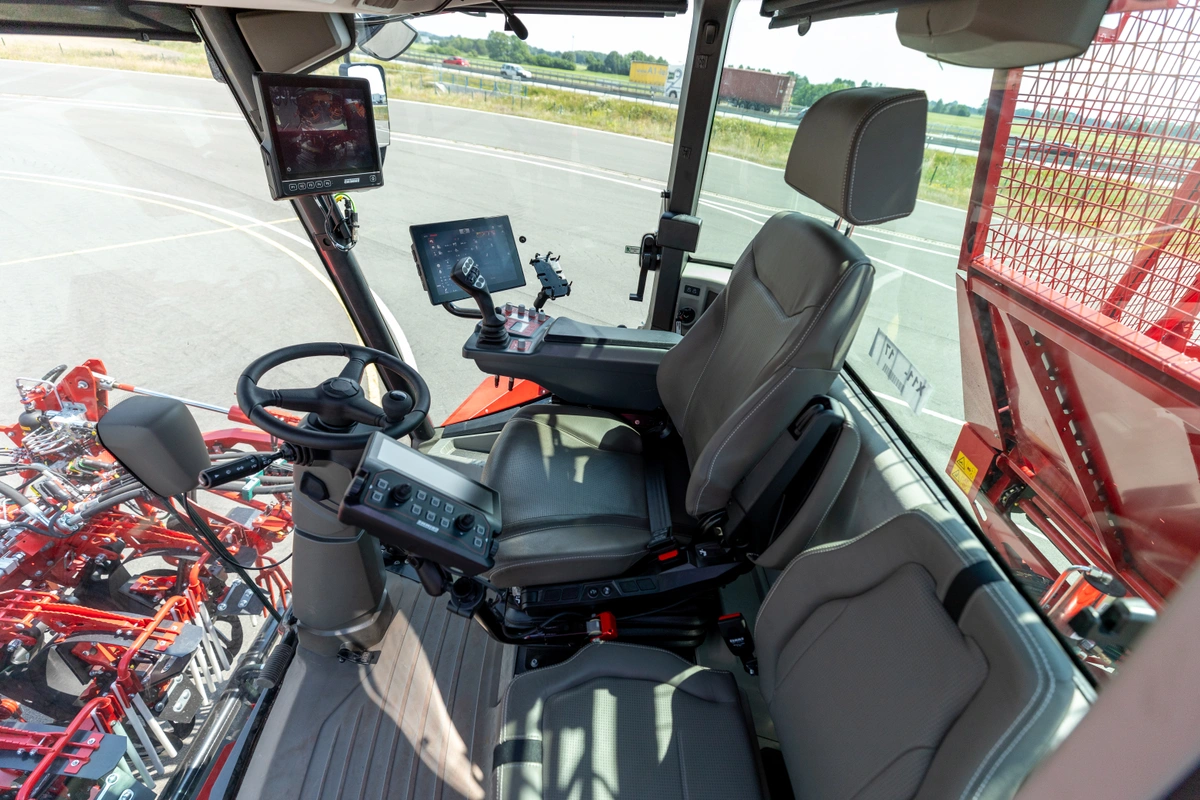

Picture: The new cab from Claas Industrietechnik offers a comfortable workplace including a passenger seat. (©GRIMME)

Manoeuvring lighting and the SideView camera package are available for the best possible all-round visibility, even at dusk and in the dark. The manoeuvring lighting is an additional LED light that switches on and off depending on the speed. The safety of road users is significantly increased, especially when driving on the road or during confusing manoeuvres (roundabouts, entrances/exits).

The additional lighting illuminates the digging area of the machine even more during harvesting and ensures improved visibility.

The SideView package also includes two additional cameras at the left and right rear of the machine and is fully integrated into the SmartView video system. The images from the SideView and the reversing camera are displayed simultaneously on a monitor, increasing clarity when manoeuvring and reducing the risk of collisions.

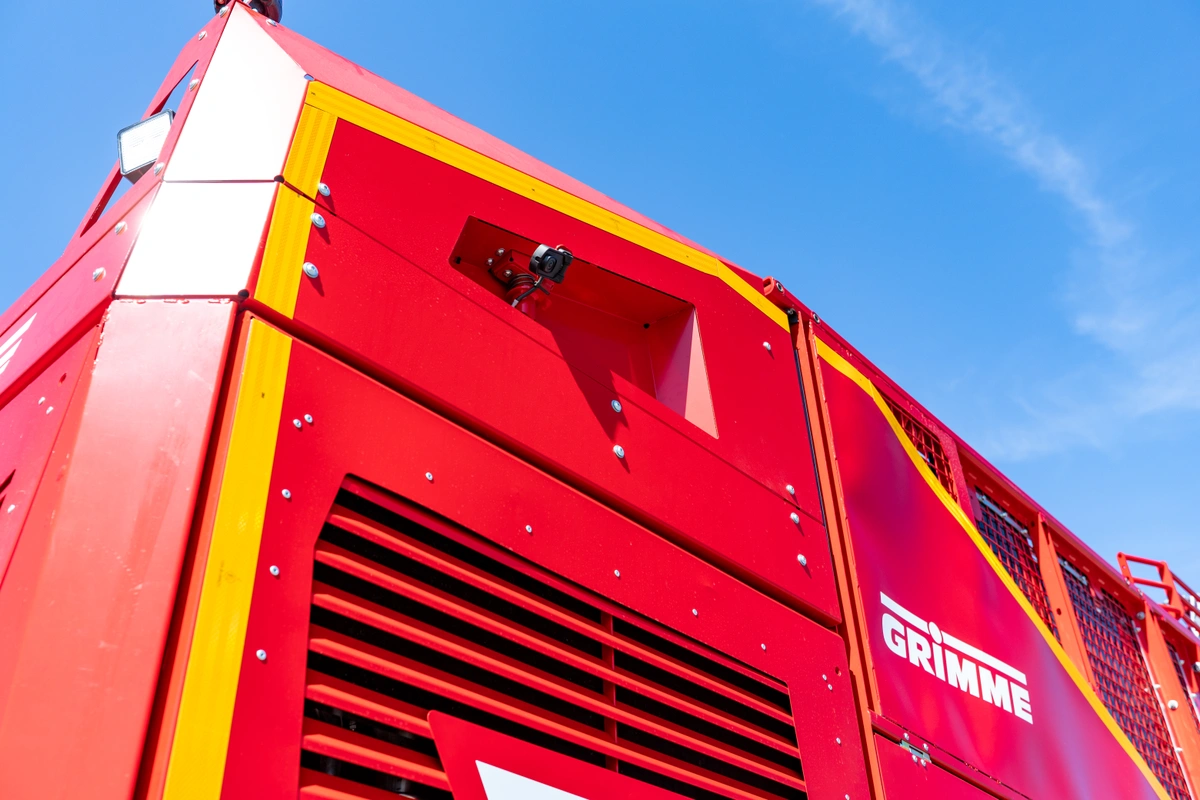

Picture: The SideView cameras are mounted on the right and left and ensure improved safety when manoeuvring. (©GRIMME)

Further operating and assistance systems to make work easier

The new, optionally available ISOBUS IBX 200 is available as an additional operator unit on the left armrest. This operator unit is equipped with two joysticks and a variety of haptic and freely assignable control elements. The occupancy and status indication is shown on the 7.8-inch display. The left-hand control element is mainly used for the overloading process during harvesting or for unloading at the clamp. The left armrest can be folded up for easy access and exit.

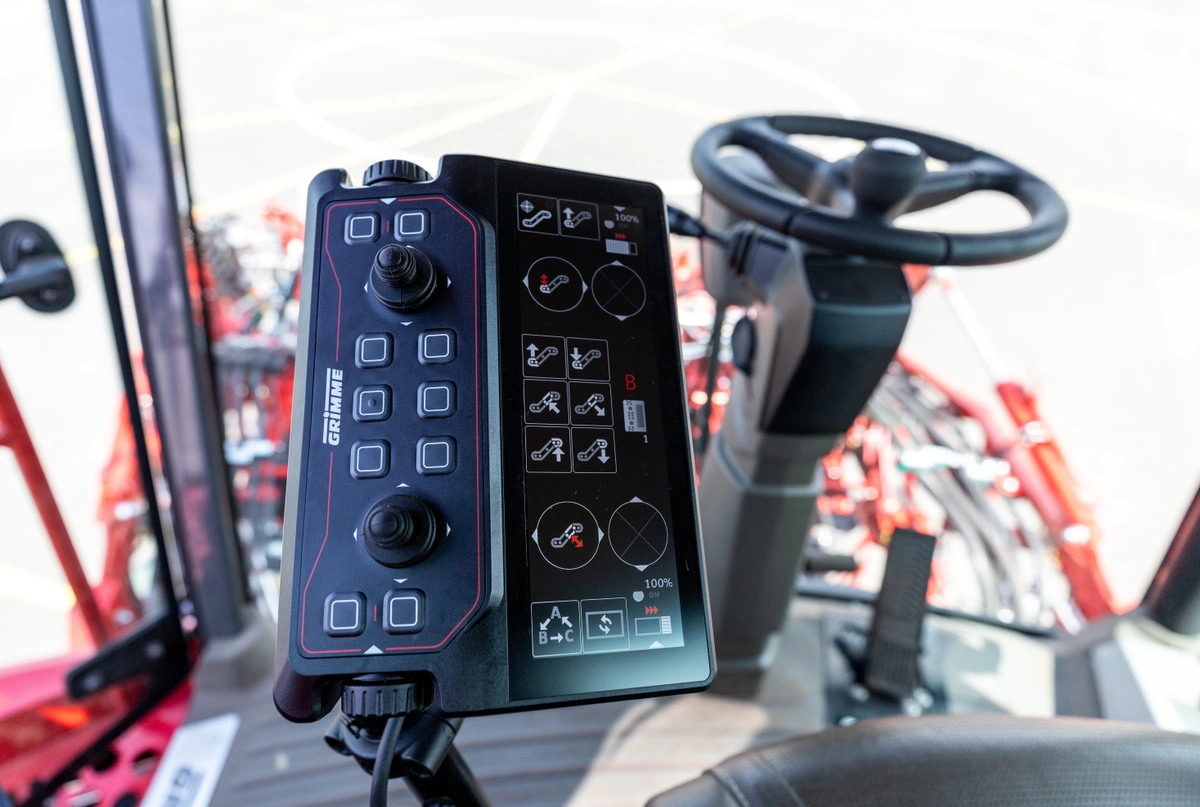

Picture: The IBX 200 is fixed with a so-called ‘RAM mount’ and can be quickly adjusted to suit any operator by simply loosening a screw. (©GRIMME)

With the Speedtronic-Cruise assistance system presented at Agritechnica 2023, the forward speed of the beet harvester is actively controlled for the first time. Based on the selected driving mode, the machine automatically regulates the harvesting speed depending on the crop load through different parts of the harvester.  In combination with the standard Speedtronic for the conveying and cleaning unit, this corresponds to an almost autonomous beet harvest within the row.

Revised design and rearranged motor unit

The motor unit has been redesigned for the new generation of the REXOR 6300. The new drive component arrangement has improved accessibility and therefore the ease of servicing and maintenance. The cooling concept has been revised to significantly improve engine cooling. All relevant engine components are easily accessible via the large maintenance flaps. Due to the redesign of the motor unit, the access to the bunker is now positioned to the side of the ring elevator. From there, the driver can safely enter the bunker to carry out maintenance work on the bunker and the engine unit. The plastic hopper lining on the sides of the bunker for the best possible crop protection is still available and reduces tip breakage and damage during unloading.

An anti-soiling package on the rear wall of the bunker can also be configured to prevent soil adhesion and build-up.

Picture: The rearranged engine unit offers easy accessibility as well as space for a toolbox and an additional storage compartment. (©GRIMME)
